Overview

Understanding the relationship among Routines, Transfers, and their statuses is fundamental to building robust integration with Astra. This guide explains how these two objects relate to each other, their respective status flows, and why listening to webhooks is critical for maintaining an accurate view of your program’s payment activity.

Refresher | What Are Routines and Transfers?

Routines are the instruction set or ingredients for creating Transfers, while Transfers are the object that actually facilitates the movement of funds between a source and destination account or card. Transfers are always the source of truth for the status of an end-to-end payment.

A Transfer cannot exist without a parent Routine object. However, a Routine can exist without ever creating a child Transfer. We’ll highlight some examples in later sections.

Refresher | What Are Webhooks?

Astra uses Webhooks to send programmatic updates when the status of a core object in our system changes. Astra presently sends Webhooks for the following object status changes:

• UserIntent / Users

• Cards

• Routines

• Transfers / BatchTransfers

• Chargebacks

We also have the option to enable a Webhook when externally created Wires or ACH Transfers settle in an FBO+ Account / Payment Instrument. See more information here

With the exception of Payment Instrument Webhooks, Astra’s other Webhooks simply include the resource_id of the object that has had a status change. For example, if a Transfer’s status changes from pending to processed, the transfer_updated Webhook payload would include the transfer_id (from the resource_id property in the webhook payload) of the Transfer that has had a status change. The webhook payload will not include the new status of the object. To fetch the updated status of the Transfer object, you’d need to invoke the GET Transfer resource (and optionally the GET Transfer Segments resource for details on each transfer segment).

Routine > Transfer Relationship

In this section, we’ll look at the core relationship between Routine & Transfer statuses along with corresponding Webhooks.

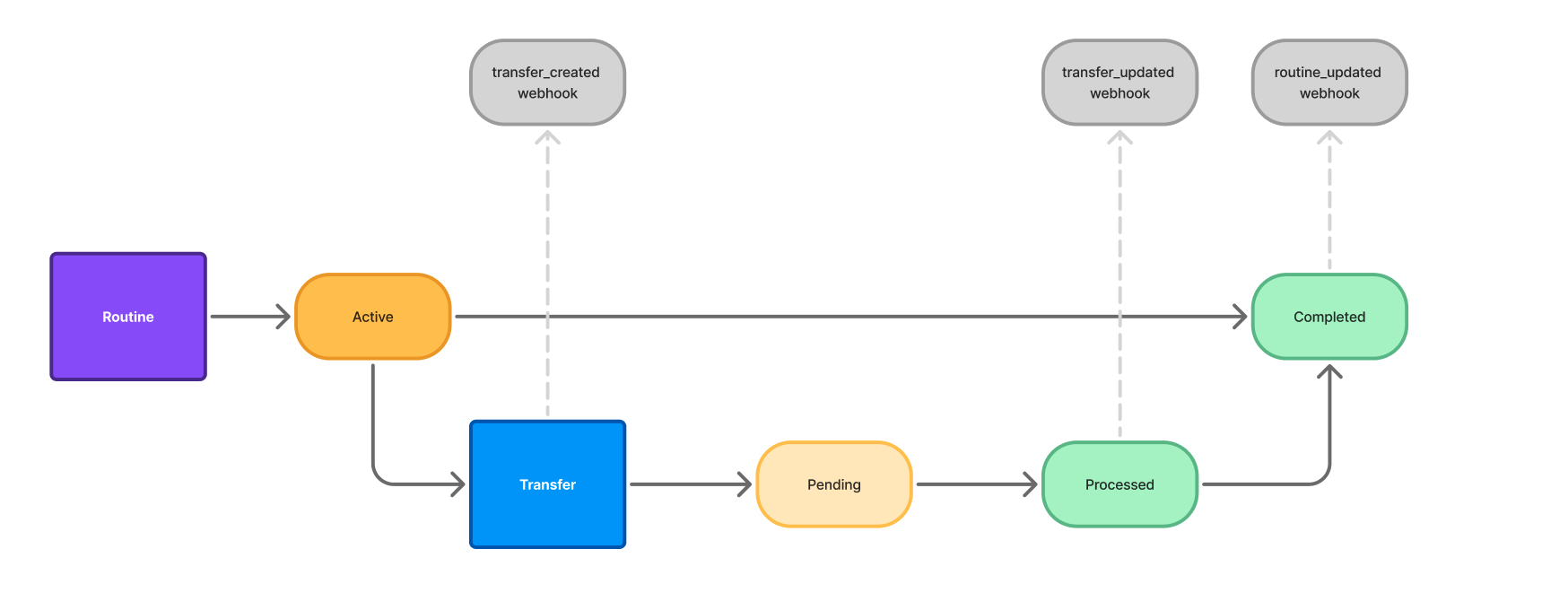

Successful Transfer Scenario

In this example, a Routine spawns the creation of a Transfer, which successfully processes. Here is a breakdown of the events.

• The Routine passes validations and is successfully created, yielding a Routine status of active

• The Routine kicks off the creation of a child Transfer object, which has the status of pending

  • This triggers a transfer_created webhook.

• Once the funds settle in the destination account, the Transfer’s status will change to processed.

  • This triggers a transfer_updated webhook.

• The parent Routine’s status updates to completed

  • This triggers a routine_updated webhook.

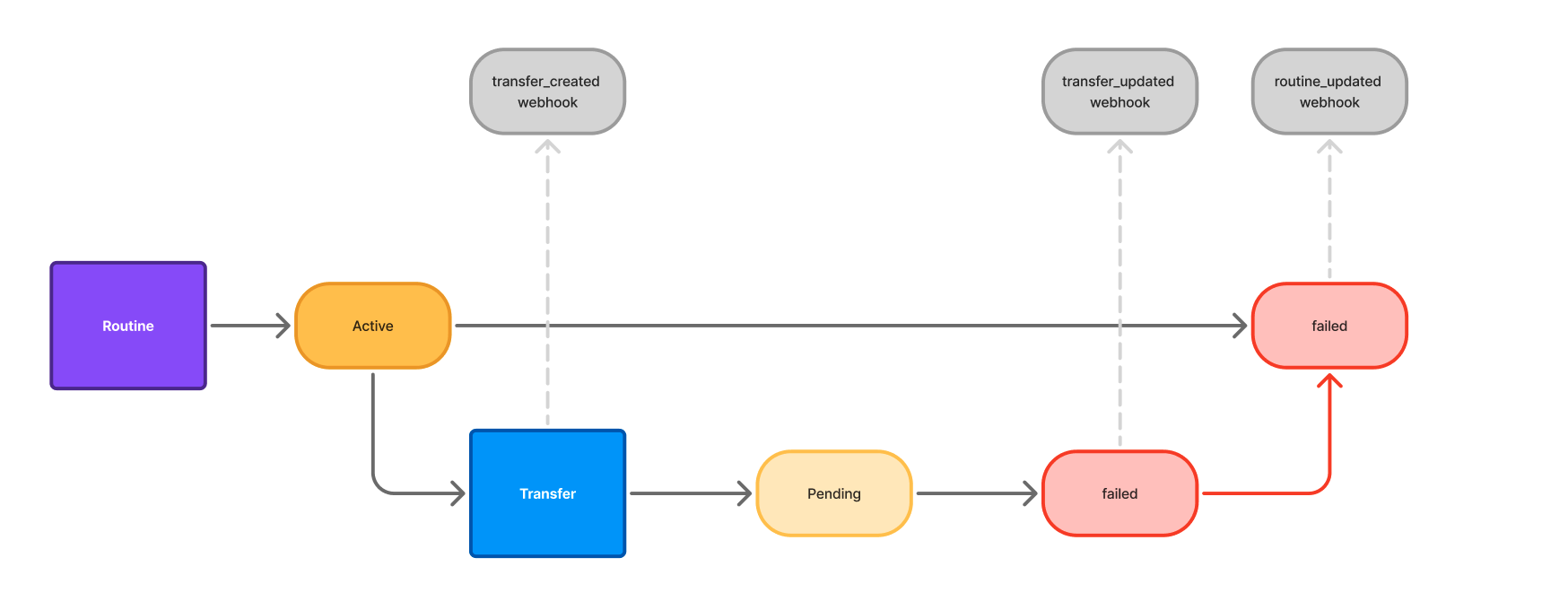

Failed Transfer Scenario A

In this example, a Routine spawns the creation of a Transfer, which fails before the funds can settle. Here is a breakdown of the events:

• The Routine passes validations and is successfully created, yielding a Routine status of active

• The Routine kicks off the creation of a child Transfer object, which has the status of `pending`

  • This triggers a transfer_created webhook.

• In this scenario, the destination account is not enabled for RTP/FedNow (real-time) payments, so Astra is unable to successfully credit the funds to the destination account. As a result the Transfer status updates to failed

  • This triggers a transfer_updated webhook.

• The parent Routine’s status updates to failed

  • This triggers a routine_updated webhook.

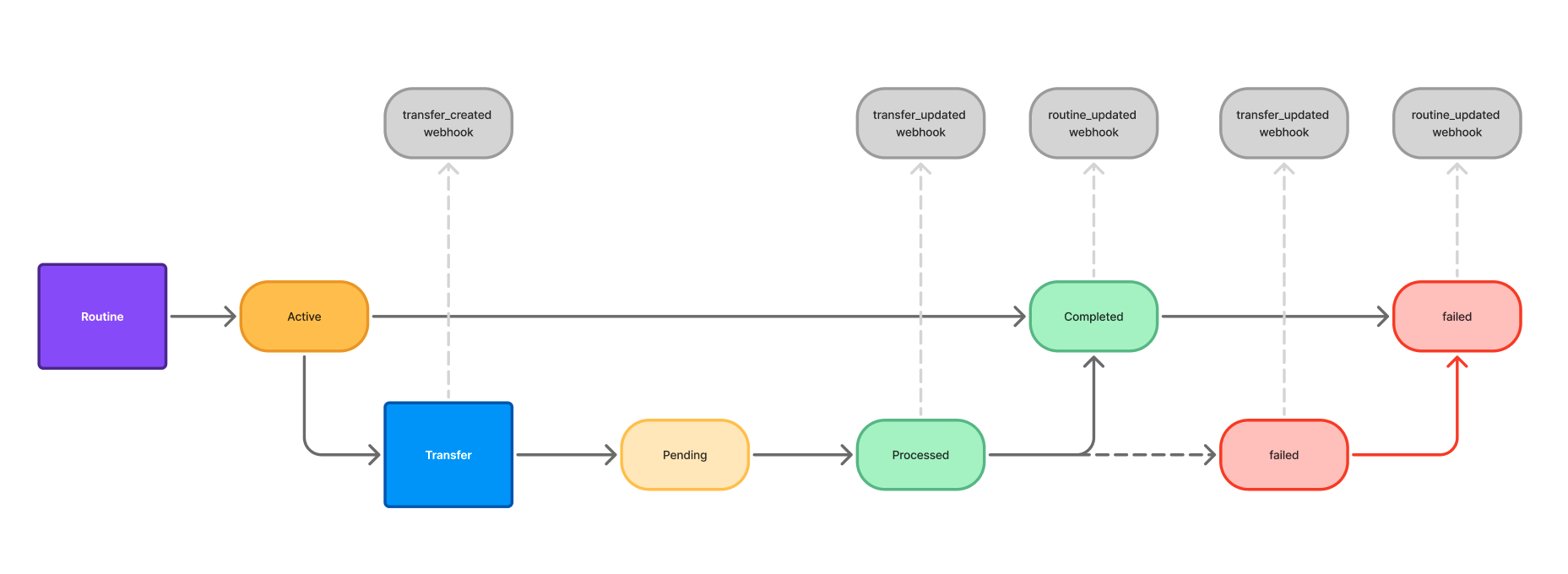

Failed Transfer Scenario B

In this example, a Routine spawns the creation of a Transfer, which fails after the funds have settled in the destination account due to a Return Code. Here is a breakdown of the events:

• The Routine passes validations and is successfully created, yielding a Routine status of active

• The Routine kicks off the creation of a child Transfer object, which has the status of `pending`

  • This triggers a transfer_created webhook.

• Once the funds settle in the destination account, the Transfer’s status will change to processed.

  • This triggers a transfer_updated webhook.

• The parent Routine’s status updates to completed

  • This triggers a routine_updated webhook

• In this scenario, the RDFI triggers a Return Code, which Astra receives two Business Days later. In this example, the account was closed and we received an R02. The Transfer status updates from processed to failed.

  • This triggers another transfer_updated webhook.

• The parent Routine’s status updates from  completed to failed

  • This triggers a routine_updated webhook

Implementation Notes

The following section outlines technical steps, and recommended best practices for a robust integration:

Webhooks provide an easy and effective way to be notified when an entity’s status changes.  Due to the reliability and efficiency of Astra’s webhooks, we recommend you enable and consume webhooks as part of your integration.

Typical Webhook Flow Implementation Recommendations

1. For all API requests your system makes to Astra, we recommend logging/storing the response body and Request-Id header value.

2. When creating a routine, store the resulting routine_id, and any other relevant routine properties.

   1. Minimum suggested routine properties to save/store

      1. routine_id

      2. source_id

      3. destination_id

      4. destination_user_id

      5. amount

      6. type

      7. status

      8. created

      9. user_id of the User that created this routine

      10. request_id (for the POST /v1/routines API request)

3. The next webhook you receive will either be transfer_created or routine_updated

   1. If the routine is processing without issue, you will receive a transfer_created webhook here.

      1. Minimum suggested transfer properties to save/store

         1. transfer_id

         2. routine_id

         3. client_correlation_id

         4. source_id

         5. destination_id

         6. destination_user_id

         7. amount

         8. created

         9. updated

         10. status

         11. user_id of the User that created this transfer

   2. If the routine fails during processing, you will receive a routine_updated webhook here, and no further webhooks.

      1. Fetch routine details via GET /v1/routines/routine_id

         1. Update the related routine status in your system.

         2. Note the failure_reason, and save/store in association with the routine.

4. Receive transfer_updated webhook

   1. Fetch transfer details via GET /v1/transfers/transfer_id resource.

      1. Update the related transfer status in your system.

      2. Note if there is a failure_reason, and save/store in association with the transfer if present.

   2. For Card-to-Card and Account-to-Card routines, the time delta between transfer_created and transfer_updated webhook delivery may be on the order of milliseconds.  In this case, you may opt to only take action on fetching transfer data for the transfer_updated webhook.

5. Receive routine_updated webhook

   1. Fetch routine details via GET /v1/routines/routine_id resource.

      1. Update the related routine status in your system.

6. When dealing with Routines with ACH segments, you may receive additional transfer_updated webhooks for the related transfers.

   1. Example: For an Account-to-Account transfer that completed successfully yesterday may experience a return on one of its segments today.  When a return is received by Astra, you’ll receive a transfer_updated webhook.  We recommend checking the transfer segments resource at this time for specifics.
